Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Product Categories
Shanghai Runlan Filtration Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

  • 1
  • 2

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : Pressure vessel, Pump

Condition : New

Efficiency : high

Construction : Cartridge Filter

Porosity : refer to your needs

Place of Origin : Shanghai, China

Brand Name : RH

Dimension(L*W*H) : refer to your needs about its size

Weight : KG

Warranty : one year

quality : good

material : stainless steel PP and so on

temperture : well adjustment

chemical : stable

flow : big

handling capacity : big

permit great impurity : big

sliding sideway chance : small

pressure loss : small

price : reasonable

Packaging Details : Packaged in carton or wooden case

Port : FOB Shanghai

Supply Ability : 100000 Set/Sets per Month

Price : $500.00 - $1,000.00/sets

MOQ : 1

Contact Now

More details about Our Filters :

1. Options Easy operation, high economic efficiency bag filter.

2. Each bag has a separate locking device ensure good seal between the bags and filter.

3. Positive sealing arrangement to avoid leakage

4. ASME Designs standard.

5. Multiple bag filter is from 3 bags to24 bags.

6. Applicant: Large flow rate and large particle field.

JIS / DIN / ANSI flange connection :

·Heating jacket for high viscosity liquid ·Flexible inlet/ outlet orientation

·SS304/ SS316L PP and other materials are available

Accessories :

·Floating ball makes bag changing easy ·Magnetic bar adsorb metallic particle

·Mesh basket can replace the filter bag

Applications :

·Chemical ·Pharmaceutical ·Food & Beverage ·Paint ·Automotive Coating

·Oil Refinery ·Marine ·Water Treatment

RH Bag filters Technical Parameters :

Filter model

Containable Filter bags' quantity

Filter bag model

Filter cartridge surface area (

M2)

Inlet and Outlet deameter

(nominal size )

Maximum flow

(t/h)

RH-5

1

3#

0.046

1"

5.75

RH-10

1

4#

0.092

1"

10.35

RH-20

1

1#

0.184

2"

20.70

RH-45

1

2#

0.405

2"

45.50

RH-90

2

2#

0.81

3-4"

91.00

RH-135

3

2#

1.215

3''-6''

136.5

RH-180

4

2#

1.62

4''-6''

182

RH-225

5

2#

2.025

4''-8''

227.5

RH-270

6

2#

2.43

4''-8''

273

RH-315

7

2#

2.835

6''-8''

318.5

RH-360

8

2#

3.24

6''-8''

364

RH-405

9

2#

3.645

6''-8''

409.5

RH-450

10

2#

4.05

6''-8''

455

RH-540

12

2#

4.86

8''-10''

546

RH-630

14

2#

5.67

10''-12''

637

RH-720

16

2#

6.48

10''-12''

728

RH-810

18

2#

7.29

10''-14''

819

RH-900

20

2#

8.10

10''-14''

910

RH-990

22

2#

8.91

10''-14''

1000

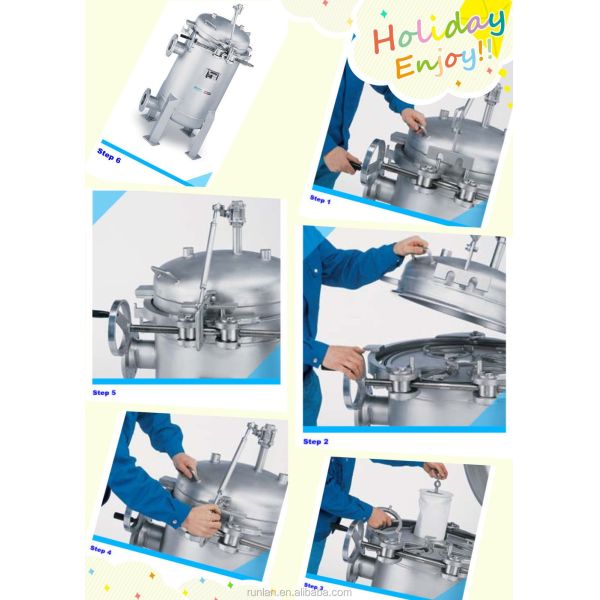

Some pictures for the Bag filters :

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Support OEM

Support OEM

We are professional manufacturer of filtration equipment in China mainland with the standard and the non-standard products for any field.Such as Electronic components & Supplies Pharmaceuticals industry and so on.Everything will be refer to the customers' needs .

Factory Tour

Factory Tour

Our factory are professional for the filter for several years , we have 120 staff now .and many of them have above 5years experience , with 3production lines and our continuous effort ,innovation ,we have got many good reputation From our customers . We are of confidence to create a great future !

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Team Show

Team Show

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Packing and Shipping

Packing and Shipping

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Service Display

Service Display

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

Customer Photo

Customer Photo

Stainless Steel Honey Purifier for Smooth Filtering Process in Manufacturing Plant

FAQ

FAQ

1 Are you manufacturer?
Yes, we are manufacturer , our factory is located in Shanghai,China. Welcome your coming to visit us!
2 What's your MOQ?
One piece sample is ok and more quantities, more favorable price
3 Do you accept OEM?
Yes, we can manufacture according to your requirement
4 What is the process to place an order ?
At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping .
5 Are customized products accepted?
We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Runlan is your factory !
6 Any discount possible if I place an order?
Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information.
7 How long is the delivery time ?
Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly
8 More information about the payment terms ?
We accept the TT , West Union and Cash .
9 How to realize continuous filter for the bag filters? When to exchange the filter bag ?
A. The bag filter can be fixed in parallel and exchange the filter bag , so guarantee it can filter continuously . B. (a) refer to the experiences to make rough estimation for it .
(B) Fix the pressure gage , once the differential pressure reach the section as 0.5-1kg/cm2,we will need to exchange the filter bag .
10 How is the quality of the filters?
At Sinft we insist on providing our customers with the highest quality of filtration products. As a result, all of our replacement elements are manufactured right here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry six ISO Standards and we fully guarantee all of our products.
